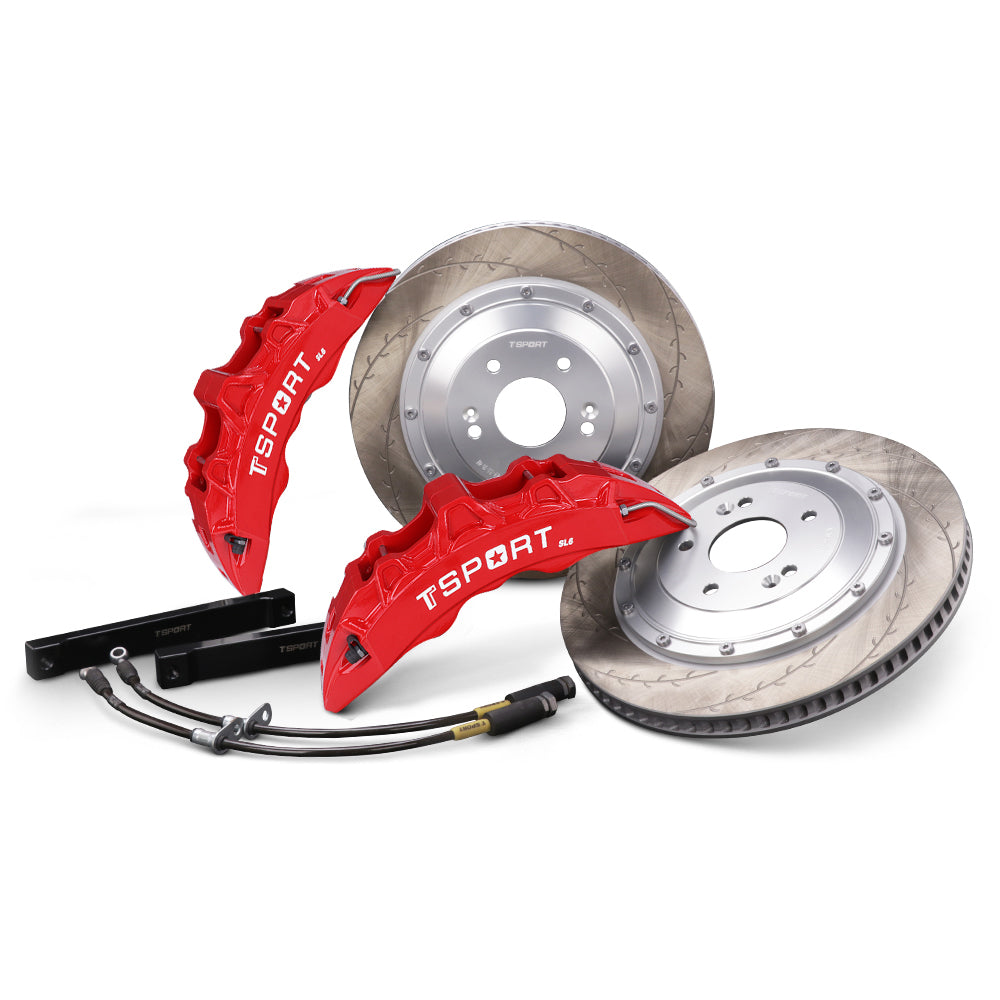

Stop guessing if a big brake kit will fit. The TTSPORT SL6 is engineered to deliver a massive performance boost while clearing most factory 17"+ wheels. This is the solution for enthusiasts who demand real performance without the added expense and hassle of aftermarket wheels.
The narrow-body, six-piston forged caliper provides a huge increase in clamping force and thermal capacity, eliminating brake fade and giving you a firm, linear pedal feel you can trust. We designed the SL6 to work seamlessly with your stock master cylinder for a true bolt-on upgrade that doesn't upset your car's balance. Get the stopping power you need with the wheels you already have.
The following data highlights the engineering behind the SL6's compact power. Note the staggered piston diameters for smooth engagement and the substantial piston area for a major upgrade in clamping force over stock. This kit is exclusively available with our high-carbon steel rotors and comes standard with our M-01 street performance brake pads.
Caliper Engineering | |
---|---|
Series | Slim Series |
Model | SL6 |
Mounting Position | Front Axle |
Piston Count | 6-Piston, Staggered |
Piston Type | 2-Piece Vented with Dust Boots |
Piston Diameter | 28 mm / 30 mm / 36 mm (1.10 in / 1.18 in / 1.42 in) |
Total Piston Area | 54.95 cm² (8.52 in²) |
Construction | 2-Piece Forged Aluminum Alloy |
Net Weight | 3.60 kg (7.94 lbs) (Single Caliper, No Pads) |
Finish | High-Temperature Gloss Coating |
Min. Wheel Size | 17" Recommended |
Required Rotor Size | ⌀330–355 mm (13.0–14.0 in) × 28 mm (1.10 in) thick |
Rotor Specification | |
Material | High-Carbon Steel |
Construction | 2-Piece Fixed |
Venting | Directional Vented |
Surface Patterns | Curved Slotted / Grainslot / Waveslot / Drilled & Slotted |
Brake Pad Compound | |
Compound Model | M-01 Street Performance |
Operating Temp | Up to 600°C (1112°F) |
Friction Coefficient | 0.38 μ |
Supporting Hardware (Vehicle-Specific) | |
Brake Hoses | 3-Layer Stainless Steel Braided (PTFE Core, SUS304 Braid, PVC Sheath) |
Rotor Hat / Bell | Custom CNC-Machined 6061-T6 Aerospace-Grade Aluminum |
Caliper Bracket | Custom CNC-Machined S45C Forged Steel |
Confirm you are running 17" or larger wheels.
Measure from the rotor mounting face to the back of the wheel spokes. You need at least 84 mm (3.31 in) of clearance.
Please use the vehicle filter or contact us to confirm.
Want a printable fitment template? Contact us with your vehicle's year, make, and model, and we'll email you a 1:1 wheel-clearance template.
Yes, this is a comprehensive, vehicle-specific system engineered for a complete bolt-on installation. Each SL6 kit includes:
Check out how other enthusiasts are running our big brake kits on their builds. Real cars, real results.
View Customer BuildsYou’re here because you’re passionate about your ride, and so are we. We want your TTSPORT brake upgrade to be a total win. Here’s some straight talk to make sure everything goes smoothly, from fitment to bedding in.
Look, we know you get it. Your brake kit is custom-made for your specific car. That means once it's built, it's yours. We can only accept returns if there’s a genuine quality defect from our side.
Sometimes, aftermarket wheels can be tricky. Depending on the design, you might need spacers for clearance. We’ll do our best to help you figure it out, but issues related to wheel spacers don't qualify for a return.
To get this right the first time, we need your help. Before you order, please give us the following info:
We’ll likely ask you to confirm some measurements and send a few photos of your wheels. Please double-check everything you send us. TTSPORT isn't responsible for fitment issues if the specs you provided were off.
We check every single part before it leaves our shop. When your kit arrives, give it a good look-over. If you spot any potential quality issues, let us know within 24 hours.
This is key to awesome performance. Don't skip it.
We build our kits to last, and we stand by our work. Here’s the breakdown:
Recommended Service Intervals:
